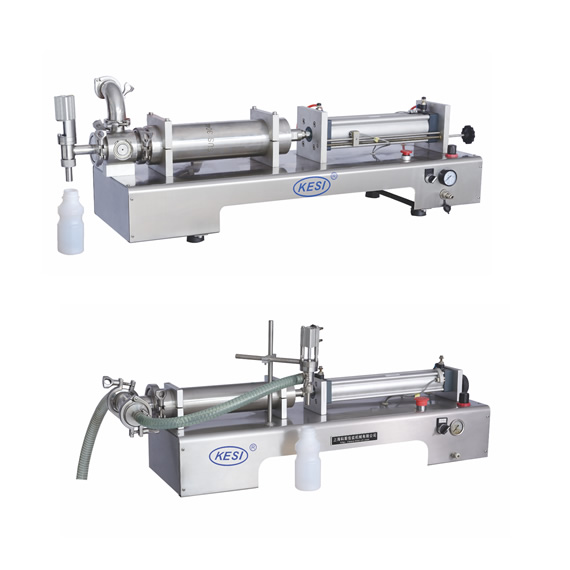

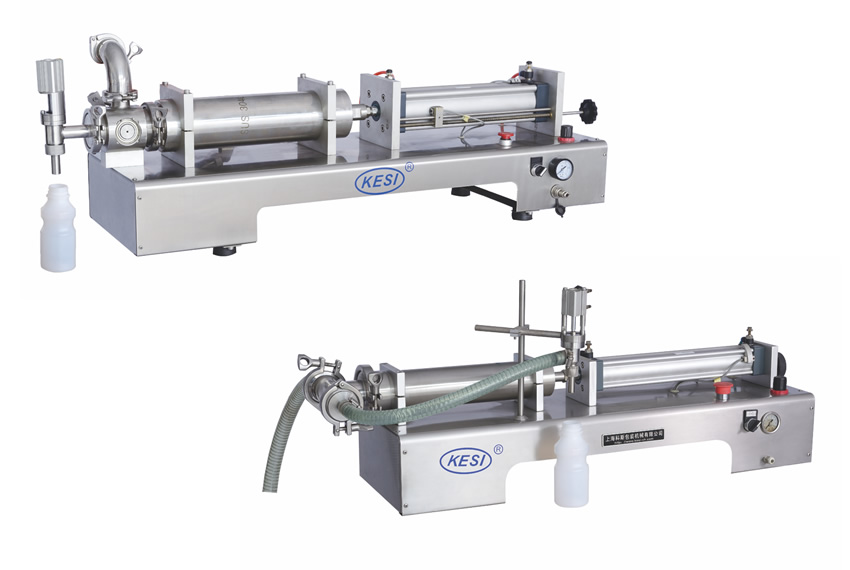

YWSG1/GWSG1 Series - Table Type Piston Filling Machine
1. Precisely control filling amount through control of piston stroke of the cylinder with a fixed volume. 2. Under the prerequisite of maximum filling amount: change the filling amount as per customer needs. 3. It can choose single head or multi-head combination as per capacity to realize single head or multi-head filling line. 4. Filling leaves no drop; high precision. 5. Easy and convenient operation; reliable performance. Applicable scope: it is suitable for filling of viscous solutions in industries like pharmaceutical, food, chemical industry, cosmetics and agriculture.


Dimension(mm) 1100×500×500 1400×400×500
Filling Range(ml) 50-1000 50-1000
Filling Speed (b/min) 0-4 0-4
Filling Accuracy Error(%) ±0.15 - 0.3 ±0.15 - 0.3
Voltage(V) 220 220
Frequency(Hz) 50 50
Working Pressure(MPa) 0.4-0.6 0.4-0.6
Gas Consumption(m3) 0.1-0.5 0.1-0.5
Conveying Direction L→R / R→L L→R / R→L


Filling output and precision shall be determined as per filling heads, filling amount and material physical properties
